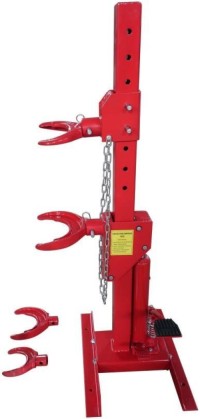

Hands Free foot operated hydraulic action with quick release Smooth, long stroke hydraulic actuator
Includes two sizes of spring yokes 100mm -158mm Adjustable spring yokes hold the strut spring very securely.
Model No: PM08703
Capacity: 1 ton
Spring Coil Diameter: 10-16mm (Never exceed maximum of 16mm)
Compression Length: 210-570mm (Never exceed maximum of 570mm)
Maximum Spring Pitch: 110mm
Strut Tube Diameter: 100-160mm
Maximum Stroke: 315mm
Safety Guard Inner Diameter: 360mm
Dimensions: 1180x510x680mm
N.W.:/G.W.: 37/39 kg
Package Size: 123x29x17 cm
20ft cntr: 450pcs
