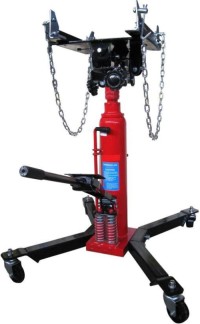

2 Stage hydraulic ram
Rugged steel wheels and full swivel ball bearing castors for easy movement 4way tilt working head and transmission mounting plate/cradle
Convenient foot pedal allows use of both hands on transmission during lift Unique hand release lever provides extra slow control safety when lowering Foot operated fast action pump & release valve
Fully adjustable saddle with corner brackets Includes safety chains
Model No: PM08204
Capacity: 0.5 ton
Min. Height: 855mm
Max. Height: 1760mm
Cradle: 360x276mm
Forward Tilt: 23°
Backward Tilt: 16°
Lateral Tilt: 7°
Base Dimensions: 690 x 780mm
N.W.:/G.W.: 64/70 kg
Package Size: 48x77x32 cm
20ft cntr: 250pcs
